Resin Bond Diamond CBN Grinding Wheels for Carbide Drills HSS Drills
Carbide Drills - resin bond diamond grinding wheels
HSS Drills- resin bond CBN grinding wheels

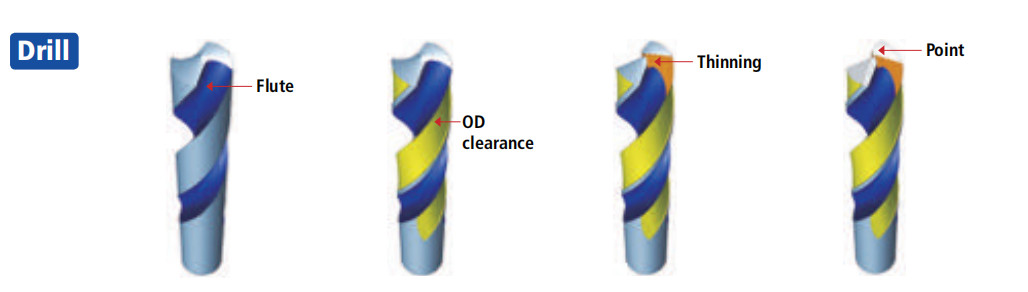

Flute grinding: 1A1, 1V1, 3V1;
OD clearance grinding: 3V1;
Thinning grinding: 1V1, 3V1;
Point grinding: 6A2, 11A2;
Brief Introduction
Resin Bond Diamond CBN Grinding Wheels for Carbide Drills HSS Drills
Resin bond diamond grinding wheel for grinding and reshapening carbide drills; Resin bond Cubic Boron Nitride grinding wheel for grinding and resharpening high speed steel drills.
Advantages:
Resin bond diamond grinding wheel for grinding and reshapening carbide drills; Resin bond Cubic Boron Nitride grinding wheel for grinding and resharpening high speed steel drills.
Advantages:
- High grinding efficiency；
- High material removal rate；
- High tools surface finish and good cutting edge quality；
- The shape of the grinding wheel is kept well；
- High machining accuracy；
- Low loss, low thermal damage, no burn of workpiece；
- Wear-resistant, long working life；
 |
||||
| Flute | OD Clerance | Thinning | Point | |
| Grinding Wheels Shape |
1A1, 1V1, 3V1, etc. Formed wheel |
3V1 (Slight angle) |
1V1 , 3V1, etc. |
6A2, 11A2 (Cup) |
| Grit Size of Grinding Wheels |
D46~D91
(for carbide drills) B64~B107 (for HSS drills) |
D46~D76
(for carbide drills) B76~B107 (for HSS drills) |
D46~D91
(for carbide drills) B64~B107 (for carbide drills) |
D30~D64
(for carbide drills) B46~B91 (for carbide drills) |
| Resin Bond Diamond CBN Grinding Wheels for Flute Grinding Carbide Drills HSS Drills | ||||
 |
 |
|||
| Shape | Size-can be customized | Carbide Drills | HSS Drills | Bond |
| 3V1 grinding wheel | D125*T10*U2-6*X6*V12 D150*T10*U2-6*X6*V15 |
Diamond Grit Size: D46~D91 | CBN Grit Size: B64~B107 | Resin |
| Resin diamond wheel CBN wheels for OD clearance grinding carbide drills HSS drills | ||||
| Shape | Size-can be customized | Carbide Drills | HSS Drills | Bond |
| 3V1 | D85*T10*U3*X6*V≤5 D125*T10*U10*X6*V≤5 |
Diamond Grit Size: D40~D64 | CBN Grit Size: B64~B107 | Resin |
| Diamond CBN Resin Grinding Wheels for Grinding the Thinning of Carbide HSS Drills | ||||
 |
 |
|||
| Shape | Size-can be customized | Carbide Drills | HSS Drills | Bond |
| 1v1 | D125*T10*X6*V15 | Diamond Grit Size: D64 | CBN Grit Size: B64~B107 | Resin |
| 3V1 | D125*T10*U6*X6*V15 | Diamond Grit Size: D64 | CBN Grit Size: B64~B107 | Resin |
| Resin Bond Diamond CBN Wheels for Point Grinding Carbide HSS Drills | ||||
 |
 |
|||
| Shape | Size-can be customized | Carbide Drills | HSS Drills | Bond |
| 11A2 resin wheel | D100*T25*W10/15*X6 | Diamond Grit Size: D40 | CBN Grit Size: B64~B107 | Resin |
Product Application
Application industries:
HNHONGXIANG can produce different shapes and sizes diamond cbn grinding wheels for different industries needs.
Tools Industry:
Endmill, drills, tap, milling cutter, reamer, gear, broach, rotary bar, hob, carbide cutting insert, PCD PCBN cutting insert, woodworking cutters, knife, scissors, etc.
Woodworking Industry:
Tipped saw blades, cold saws, band saws, knives, router heads, cutter, circular saw blades, chainsaw etc.
Bearing Industry:
Ball bearing, tapper bearing, inner/outer ring track, ring track, linear guide rail and linear guide carrier/block
HNHONGXIANG can produce different shapes and sizes diamond cbn grinding wheels for different industries needs.
Tools Industry:
Endmill, drills, tap, milling cutter, reamer, gear, broach, rotary bar, hob, carbide cutting insert, PCD PCBN cutting insert, woodworking cutters, knife, scissors, etc.
Woodworking Industry:
Tipped saw blades, cold saws, band saws, knives, router heads, cutter, circular saw blades, chainsaw etc.
Bearing Industry:
Ball bearing, tapper bearing, inner/outer ring track, ring track, linear guide rail and linear guide carrier/block
